INNOLOG™ SU DATA LOGGER

Introducing the Innolog™ SU Data Logger: Pioneering Precision in Temperature Monitoring

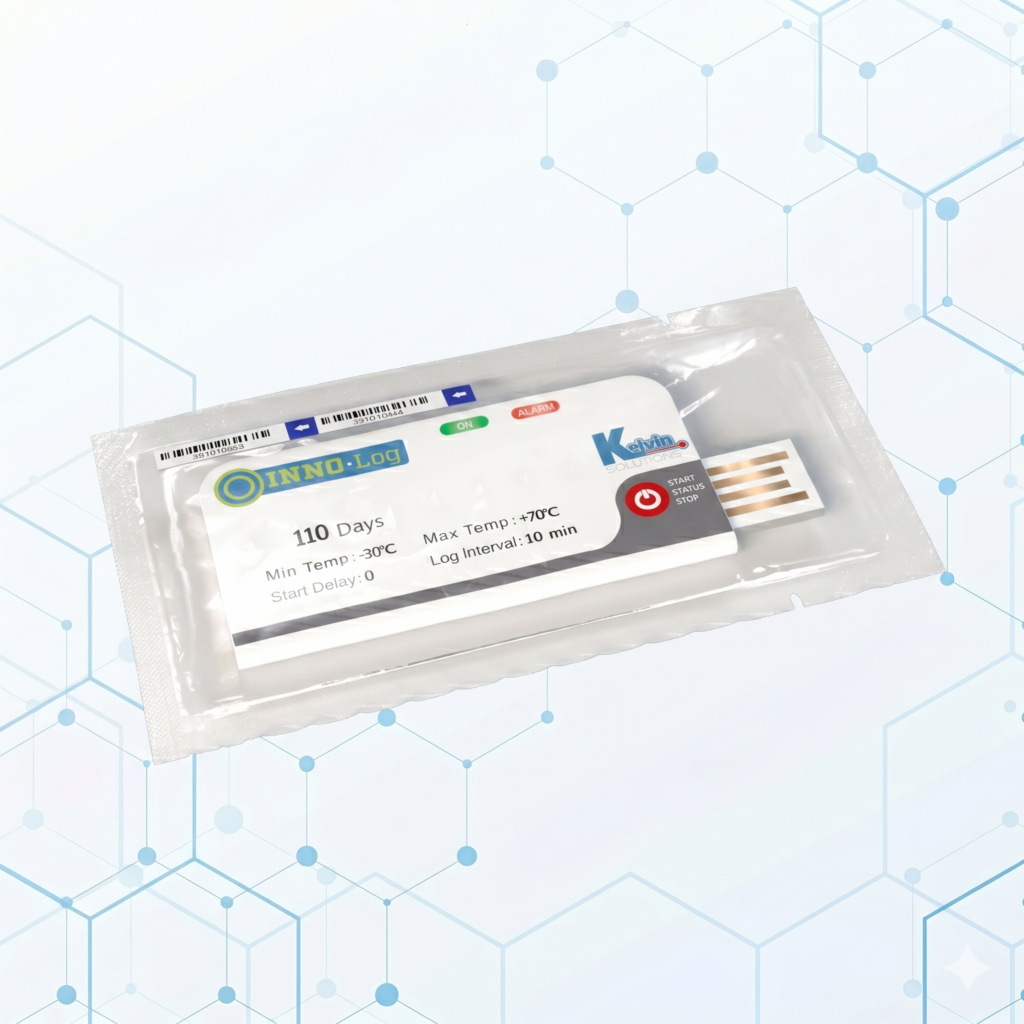

Innolog single use temperature data logger

The Innolog™ SU data logger is a state-of-the-art temperature-measuring device, meticulously validated at six points to ensure precise accuracy. Equipped with an innovative self-calibrating sensor, it guarantees reliable and consistent temperature readings for your critical applications.

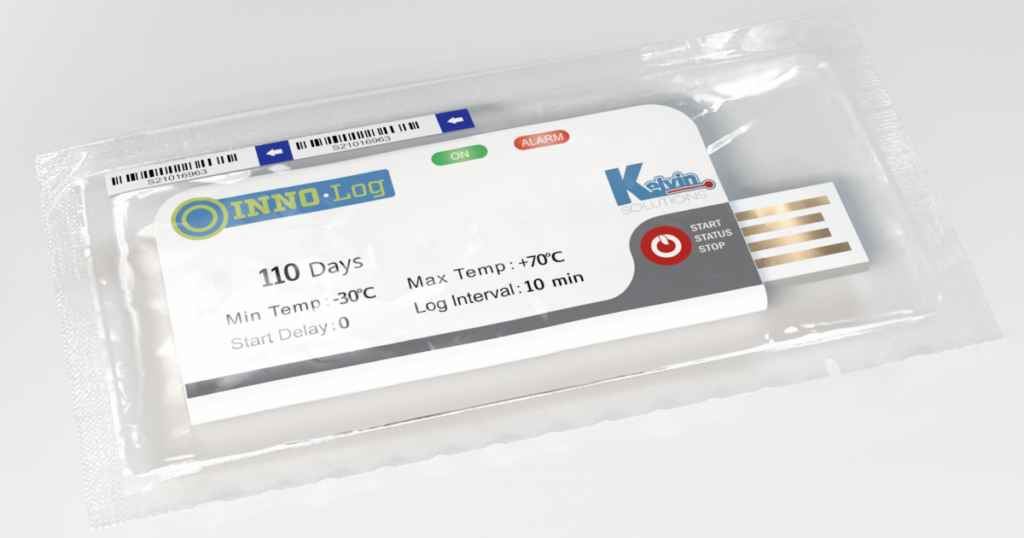

Designed with durability in mind, the Innolog™ SU comes with waterproof packaging, safeguarding the device and data in challenging environments. Its robust build allows it to withstand various conditions, making it a trustworthy companion during transportation and storage.

For seamless tracking, each device is equipped with a barcode on an adhesive label, ensuring unambiguous identification between the logger and its corresponding delivery. This feature streamlines data management and enhances traceability for your valuable shipments.

Upgrade your temperature monitoring with the advanced Innolog™ SU Data Logger - your ultimate solution for accuracy, reliability, and convenience. Experience the future of temperature monitoring today!

logo Innolog

HOW IT WORKS

It is an electronic device powered by a button battery (CR2450) that records temperature data through an internal digital sensor; it processes them through a microprocessor (CPU) and stores them in a RAM memory.



To enable and stop it, simply click on the dedicated button on the data logger.

The device is sold with a pre-installed temperature-sampling program. It is ready to use. If necessary, it is possible to request customization of the sampling times and the alarm thresholds.

Quality and user-friendliness

The electronic components are high quality: American sensor, European CPU and Japanese battery.

The product has been developed focusing on the regulatory demands and on the needs of the owner of the transported goods and of the users (the logistics operator and end customer).

In addition to the high quality, Innolog™ is also very operator-friendly. For example, the START/STOP button is easy to access; it is enabled by pressing lightly and does not need any complicated instruction booklets to be positioned correctly for use.

HOW TO USE Innolog

Enhanced memory

The Innolog™ data logger is equipped with a very powerful memory and stores a high volume of data: more than 13,200 with the pre-set program.

Instant availability

Standard configuration data loggers are always available and ready to be delivered within a few days from the order.

Immediate report and certificate validation

The data report is generated automatically when the data logger is turned off, and contains a graph and summary of the key data collected. To obtain the report, simply insert the USB part of the Innolog™ data logger into the computer USB port and view and/or print the report as PDF and CSV file without the need for hardware and software to download the data.

Each device is validated individually during the production phase.

The validation certificate is provided for each single device of the batch, in paper form and in electronic form inside each data logger.

Product certifications

logo GDP COMPLIANT
logo FCC
logo EN 12830
logo Conformité_Européenne
PICTOS_FCC
logo RoHS

​Technical specifications

DEVICE TYPE

Single use electronic data logger

SENSOR TYPE

Internal digital sensor with self calibrating function

TEMPERATURE UNIT

° C or ° F

TEMPERATURE RANGE

ACCURACY

-30° C to +70° C

±0.3° C -20° C / +40° C otherwise ±1.0

RESOLUTION

TIME REFERENCE

0.1° C / °F

UTC+00 (UTC = GMT)

STORAGE CAPACITY

RECORDING INTERVAL

RUN TIME / SAMPLING DURATION

SHELF LIFE

START / STOP MODE

16.000 measurements

10 min standard, other settings on request

ON Up to 180 days

2 years (CR2450 Battery)

Push start/stop button. Automatic stop when connected to computer

STATUS INDICATOR

Power on and alarm indication led

REPORTING

Automatic generation of PDF and CSV reports on- board. Certificate of Validation as hardcopy in the box and PDF in memory

COMPUTER INTERFACE

USB 2.0

SIZE

WEIGHT

95mm x 55mm x 4.5mm

18g

ALARM CONFIGURATION

DELIVERY CONTENTS

Up to 2 alarm thresholds (optional)

Dispatch documents, Certificate of Validation and sealed pouch

CERTIFICATIONS

VALIDATION RATIONALE

PROTECTION CLASS

EN12830, CE, NIST, FCC, Calibration, NVLAP NIST traceable

Available on request

IP67/NEMA 6

Innolog™ Data Loggers: logistic Efficiency Boost

The Innolog™ data loggers are advanced temperature measurement and monitoring devices specifically designed for the distribution chain. They excel in a wide range of key applications, including:

fruits cold chain

FRUITS & VEGETABLES LOGISTICS

Kelvin Solutions for precise temperature monitoring of food products in the cold chain.

truck cold chain supply chain

Cold logistics

Kelvin Solutions data loggers: worldwide simplicity for reliable cold chain monitoring

logistic vaccine cold chain

Pharmaceutical logistics

Innolog™ and Innocheck™ products from Kelvin Solutions ensure compliant transport of heat-sensitive medicines.

flowers cold chain

Cut flowers and plants

Kelvin Solutions provide plant & cut flower temperature monitoring with global PDF reporting.
