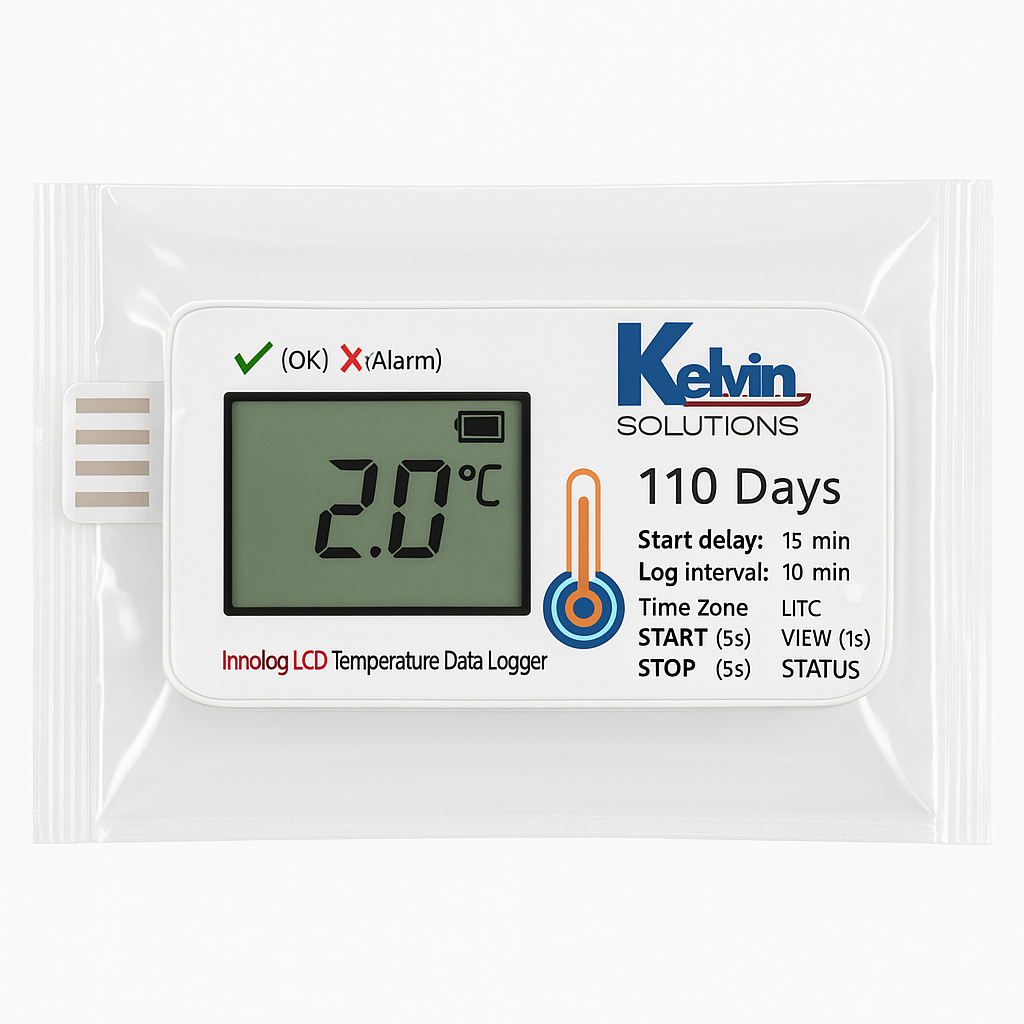

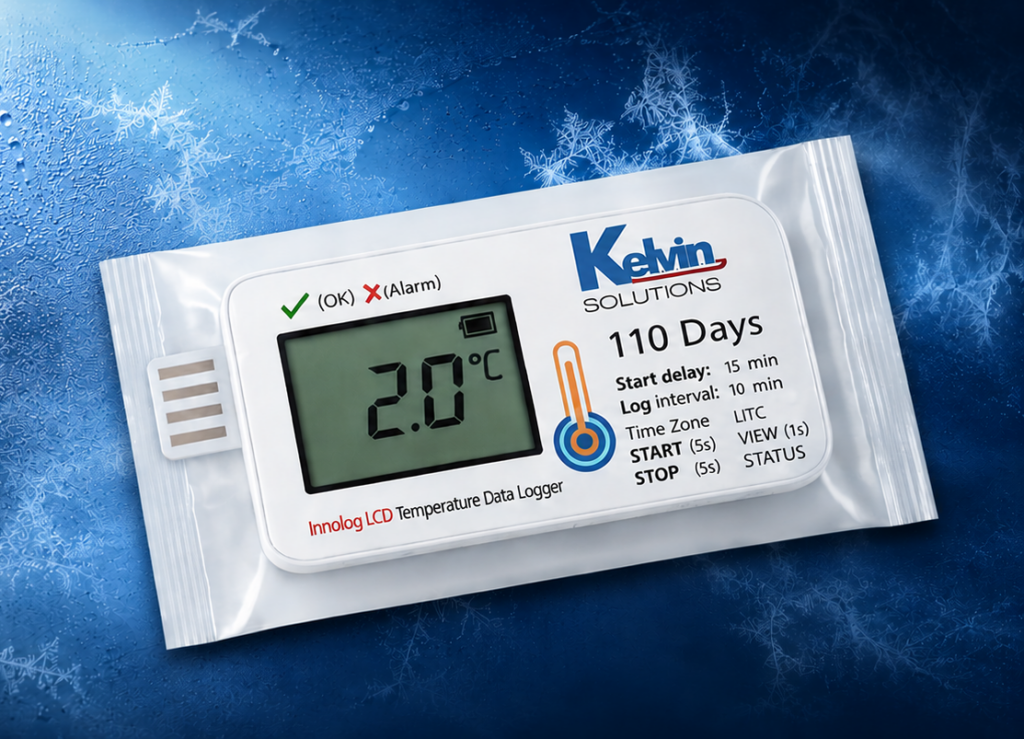

Innolog LCD: monitoring with direct visualization

innolog LCD: Cutting-Edge Temperature Monitoring

logo Innolog

Discover the ultimate solution for precise and reliable temperature monitoring, ideal for the pharmaceutical and food industries. The InnoLog LCD ensures accurate tracking and recording of temperature data, providing peace of mind for managing your sensitive products.

Key Features :

  • Extended Temperature Range: The Inno.Log LCD operates efficiently over a wide temperature range from -30°C to +70°C, ensuring optimum performance even in extreme conditions.

  • Intuitive LCD display: Thanks to its clear, intuitive LCD display, you can read quickly and easily

  • Long-term recording: Ability to record data for 110 continuous days, ideal for long-term applications.

  • USB connectivity with automatic reporting: Automatic generation of PDF/CSV reports via USB, simplifying the process of data documentation and analysis.

HOW IT WORKS

The Innolog LCD is designed for user convenience with its single-button operation to start and stop recordings. This straightforward functionality ensures easy use and eliminates complexity during data collection.

With its integrated LCD screen, the Inno.Log LCD allows users to view data in real-time, providing instant visibility of temperature readings and status updates. Additionally, it features two indicator lights - one for alarm alerts and the other for device status. These lights efficiently communicate crucial information, with flashing patterns that provide detailed insights, allowing users to identify alarm triggers and monitor the operational state of the device.

Experience seamless data logging with the Inno.Log LCD Recorder - the perfect companion for precise measurements and efficient communication during exportation. Keep full control and gain valuable insights effortlessly with this innovative recorder.

​Technical specifications

DEVICE TYPE

SENSOR TYPE

TEMPERATURE UNIT

TEMPERATURE RANGE

ACCURACY

RESOLUTION

REFERENCE TIME ZONE

STORAGE CAPACITY

RECORDING INTERVAL

STANDARD START DELAY

STANDARD TRIP DURATION  /  MAXIMUM TRIP DURATION

SHELF LIFE

START / STOP MODE

STATUS INDICATOR

PDF REPORTING PROTECTION

REPORTING

Electronic single use temperature data logger

Internal digital

° C or ° F

-30° C to +70° C

±0.5° C / 0.9° F from -20° C to +40° C ±1° C/1.8° F other

0.1° C / °F

UTC+00 (UTC = GMT)

16.000 measurements

10 min - factory adjustable from 10s to 24h

0 min - adjustable from 10s to 12h

110 days  /  180 days

18 months

Push start/stop button

Power on and alarm indication led

Using password adjustable in factory

Automatic generation of PDF and CSV reports - Validation certificate in memory

DATA RESCUE MEMORY

Automatic temperature record evry 1h even if device not started - Loop recording

COMPUTER INTERFACE

SMARTPHONE DIRECT READING

SIZE

WEIGHT

STANDARD ALARMS

IP RATING

BATTERY

PACKING

USB 2.0

With any smartphone equipped with STG

75 x 42 x 8 mm

20g

Single event or cumulative, up to 4 alarms

IP 67

UN 38.3 compliant (device classified as non-dangerous goods)

Boxes of 50 units

Advanced Cold Chain Monitoring for Food and Pharma LOGISTICS

The Innolog™ data loggers are advanced temperature measurement and monitoring devices specifically designed for the distribution chain. They excel in a wide range of key applications, including:

fruits

FRUITS & VEGETABLES LOGISTICS

Kelvin Solutions for precise temperature monitoring of food products in the cold chain.

truck supply chain

Cold logistics

Kelvin Solutions data loggers: worldwide simplicity for reliable cold chain monitoring

cold chain vaccine

Pharmaceutical logistics

Innolog™ and Innocheck™ products from Kelvin Solutions ensure compliant transport of heat-sensitive medicines.

cold chain flowers

Cut flowers and plants

Kelvin Solutions provide plant & cut flower temperature monitoring with global PDF reporting.
